TECHNICAL SPECIFICATIONS
The Integro range is designed for commercial and industrial applications across a broad range of pipe sizes and flow requirements. This page provides core product data, installation information and access to supporting technical documents.

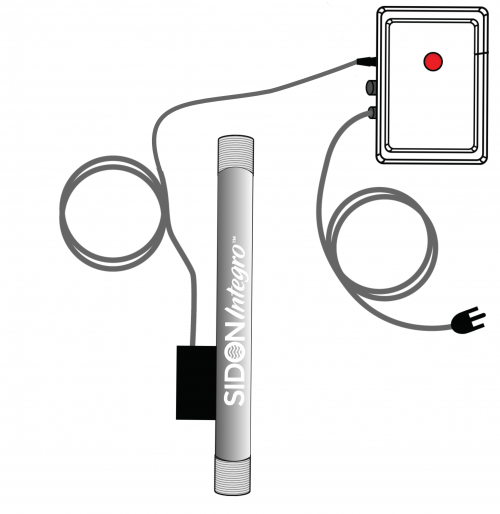

The Integro Product Range
The range includes models for smaller commercial systems through to higher-capacity industrial applications.
Model | Diameter of Pipe (inches/mm) | Length (inches/mm) | Max. Flow (m³/gallons per min) | Material | Fitting Type | Pipe Weight (lbs/kg) | Power Supply | Warranty |
|---|---|---|---|---|---|---|---|---|
Integro Eco | 2/50 | 24/600 | 0.2 / 52 | 304 or 316 SST | BSP or NPT Threaded (Male) | 9/4 | 110V or 230V single phase | 1 Year |
Integro™ 2 | 2 / 50 | 24/600 | 0.4 / 105 | 304 or 316 SST | BSP or NPT Threaded (Male) | 9/4 | 110V or 230V single phase | Up to 10 Years |
Integro™ 3 | 3 / 80 | 24/600 | 0.88 / 233 | 304 or 316 SST | PN16 or ANSI Flange | 31/14 | 110V or 230V single phase | Up to 10 Years |
Integro™ 4 | 4 / 100 | 36/900 | 1.52 / 402 | 304 or 316 SST | PN16 or ANSI Flange | 51/23 | 110V or 230V single phase | Up to 10 Years |
Integro™ 6 | 6 / 150 | 36/900 | 3.05 / 805 | 304 or 316 SST | PN16 or ANSI Flange | 93/42 | 110V or 230V single phase | Up to 10 Years |
Integro™ 8 | 8 / 200 | 36/900 | 6.09 / 1610 | 304 or 316 SST | PN16 or ANSI Flange | 132/60 | 110V or 230V single phase | Up to 10 Years |
Integro™ 10 | 10 / 250 | 36/900 | 9.65 / 2550 | 304 or 316 SST | PN16 or ANSI Flange | 190/86 | 110V or 230V single phase | Up to 10 Years |
Materials and construction
Standard Materials
The Integro range is manufactured for commercial and industrial use, with robust stainless-steel construction designed for long-term performance in demanding operating environments.
Optional Material Variants
Where required, the Integro can be manufactured in alternative conductive metals to suit specific project requirements, water chemistry or site standards. This allows Sidon Water to support more demanding applications, including seawater, desalination and other environments where material selection is critical to long-term performance.
Connection Types
The 2-inch product variant is typically supplied with threaded male fittings. Larger models are generally supplied with PN16 or ANSI flanges. Where a project requires an alternative connection format due to space constraints, material requirements, local standards, or site tie-in conditions, Sidon Water can review the requirement and advise on an appropriate solution.
Manufacturing Quality

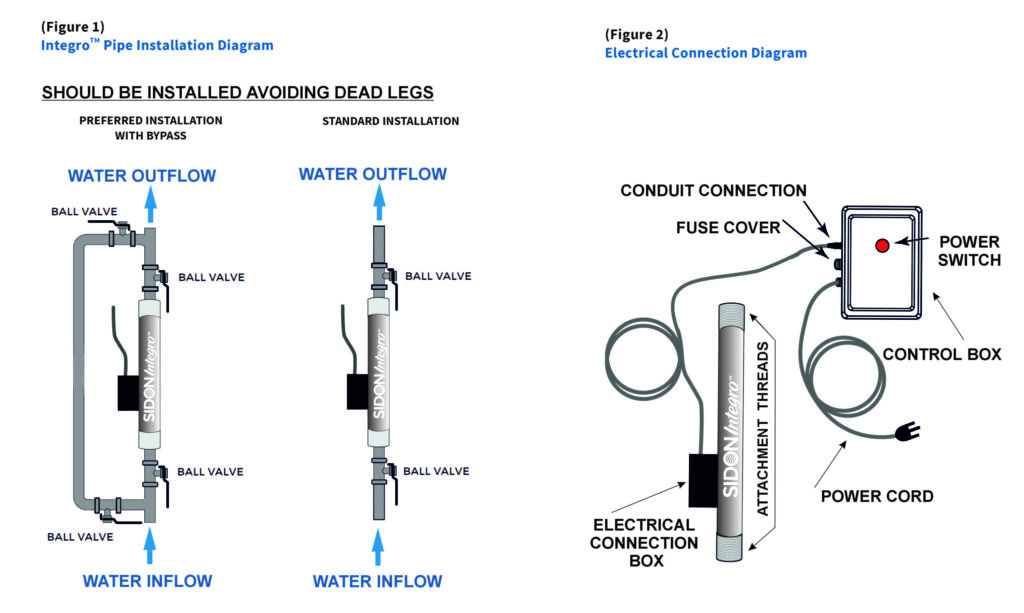

Installation Considerations
Correct product selection, placement and installation are important to performance and warranty compliance. Sidon Water works with customers to understand the system, identify the appropriate installation location and confirm the right model for the duty.
Installation guidance may include recommended position within the system, orientation, physical access, commissioning checks, feedwater quality requirements and electrical or control considerations.
Where required, Sidon Water can carry out site surveys and provide follow-up reports setting out the recommended installation location, the basis for product selection, the issues the Integro is intended to address and any relevant limitations.
Certifications & Approvals
Sidon Water collaborates with key partners to manufacture and certify the critical components of the Integro™ technology and system. Whether in the USA or United Kingdom, our partners all follow good manufacturing principles and quality control procedures.
WRAS
The Water Regulations Approval Scheme is an independent UK certification body for plumbing products and materials, helping business and consumers choose compliant products that keep water safe.
Kukreg4
KUKreg4 is designed for manufacturers and distributors of sanitary and plumbing products and components intended for installation in the UK, ensuring their compliance with UK Water Regulation 4.
UL
The UL Certification is a globally recognized independent organization that specializes in product safety testing and certification. The Integro units were certified to NSF / ANSI / CAN 61 & 372.
Made in Britain
Made in Britain brings together the British manufacturing community. They work collaboratively with UK trade bodies, relevant UK government departments, media channels to support business and sustainable growth.
Eurofins
We are delighted to work with Eurofins, who are a trusted provider of global regulatory compliance and certification. Eurofins has guided us through the MET Mark certification to UL61010-1 standards and the CB Scheme for Europe.
MET Mark
The MET Mark is recognised throughout the United States & Canada and indicates compliance to federal regulations for safe use in the workplace. The NRTL mark is required under federal law for products used in workplaces in all 50 states.
Warranty and Operating Conditions
The Integro warranty is subject to correct installation, operation and water quality conditions in accordance with Sidon Water guidance and the applicable warranty terms. Full details are set out in the official technical documents.
Technical Documents and Downloads
Download the relevant technical documents for product selection, installation and project review.
